Control room for EUSKOTREN

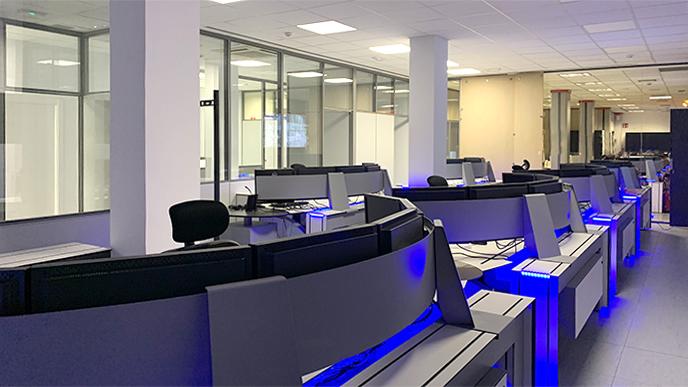

RDI has implemented the new Atxuri Train Station Control Room for EUSKOTREN, the leading transport operator in the Basque Country (Spain), which transports more than 30 million people every year. The control room is destined to manage rail traffic and factors at a functional level have been taken into account, so the Kompas console and specific CXO seating for non-stop operations environments have been incorporated.

The Kompas consoles in the control centre are equipped with excellent technical performance, having as main objective the organization of all the necessary technology in the operator's workplace, as well as the optimization and management of the structured cabling, while enabling to easily connect the equipment to the power and data networks.

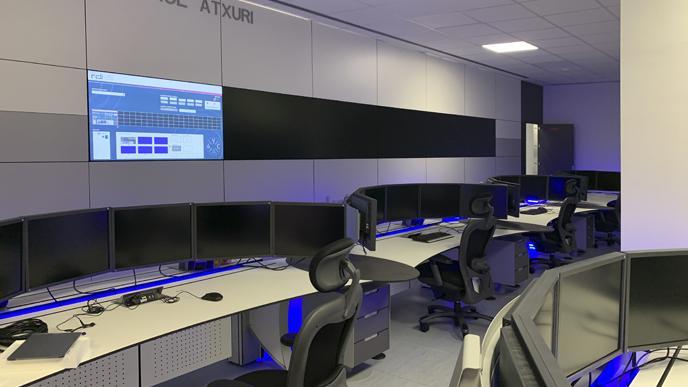

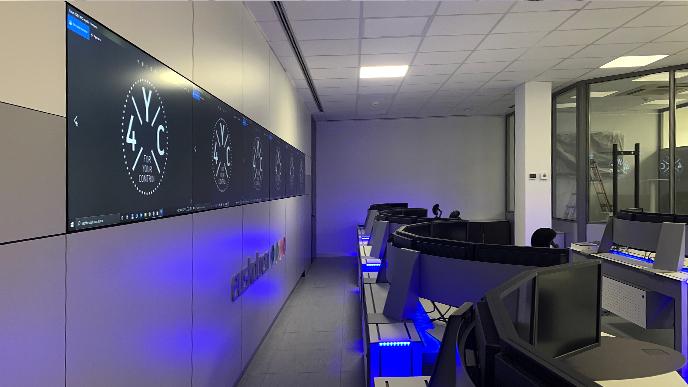

The scope of the project includes the control consoles, CXO ergo chairs, a 1x6 video wall with BARCO KVD screens combined with the corresponding structure to integrate it into the control room, and the 4YC VOIP (video over IP) data management platform totally customised for EUSKOTREN so that the management of the entire platform is totally intuitive and dynamic.

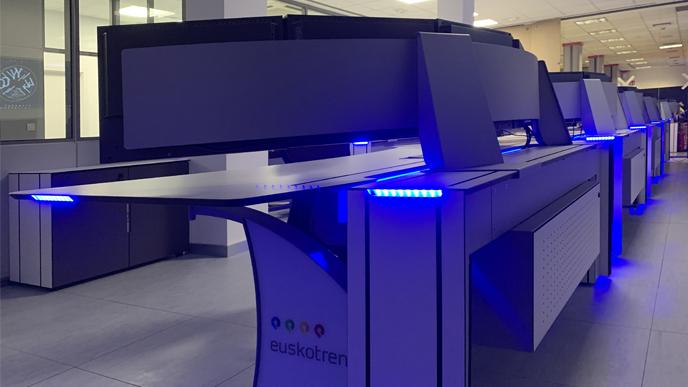

The project is already fully operational, and results in 6 work stations fully equipped with the KOMPAS console model, a new control console concept that aims to bring high technological value to 24x7 operating environments by providing maximum added value to the operator.

It is a top-of-the-range solution with excellent technical performance, with the organisation of all the technology required in the workstation as the main objective, as well as the optimisation and management of the equipment wiring and the connectivity to the network.

FEATURES OF THE KOMPAS CONSOLE



Great formal simplicity.

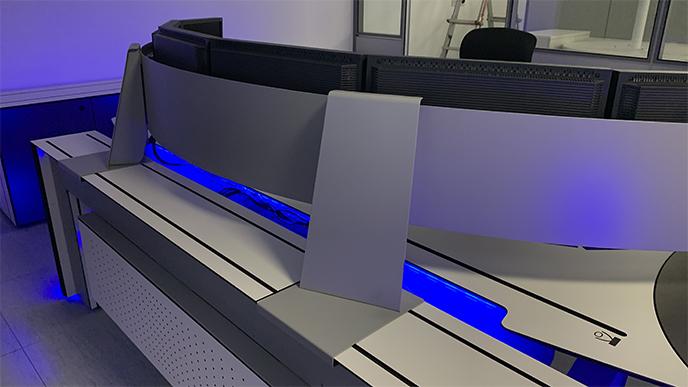

Functional arc as a structural element that distributes the wiring and locates sockets for power, data & voice.
The rail system allows the placing of the monitor/s all along the workpost.
Allows endless types of configurations & finishes.
Perfect organization of all the electronics & AV equipment.
+ Disposes of a rear compartment to house all the electronic equipment.

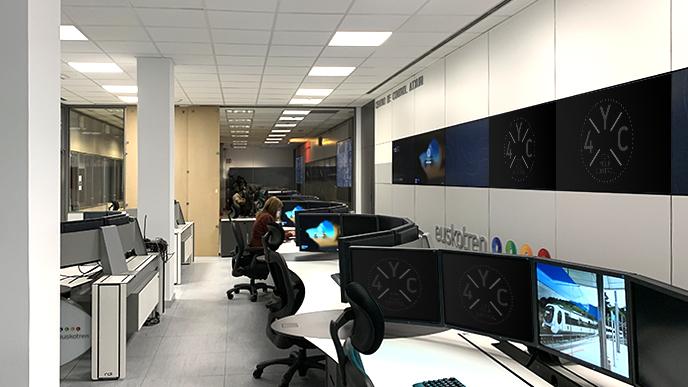

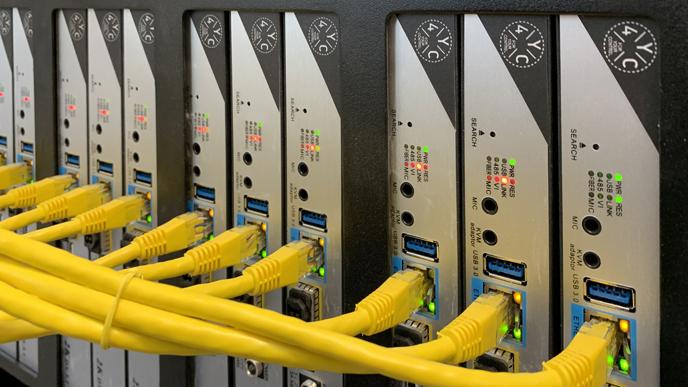

The control Center is equiped with the 4YC solution, based on the codification and decodification of all the video signals by means of a dedicated and exclusive net, having the option to visualize any of the signals of this net directly into the work posts of the control room and over the videowall.

The 4YC platform allows each screen of the operator's workstation to be subdivided into multiple windows and to switch the keyboard and mouse dynamically, obtaining immediate control of each source.


ADVANTADGES OF 4YC



- The 4YC platform allows the creation of as many users as desired.



-Saves the configuration of any user



-An active management of the audiovisual system of the control center can be carried out, operating directly on it through specific control software (4YC-Dsworks), whose interface is 100% customizable for each project.



-No type of external central server is required for user management.


-The installation of any type of software is not required on the equipment to be monitored.


-No extra equipment is required for signal switching.



-Possibility to control third party elements such as air conditioning, lighting, sound, curtain opening, etc.
