Control room for the Saudi telecom regulator

Roomdimensions was commissioned to develop a new reference project for the Saudi telecommunication regulator. The mission of the control room is to maintain the security of data at the organization. To cover the 24/7 uninterrupted operative, the operators rotate in three shifts, so it must be ergonomically adaptable to the needs of each operator.



Thanks to our work methodology based on the personalization of each project, RDI has implemented a correct operation in the control room. In this case, the V-Concept console range meets the requirements of such a workplace. This console is based on a simple, dynamic, lightweight and minimalist look.



The design of the structure is modular, with all its elements integrated into its characteristic "V" shape in section. This allows the creation of multiple posts where communication between the different operators is facilitated.

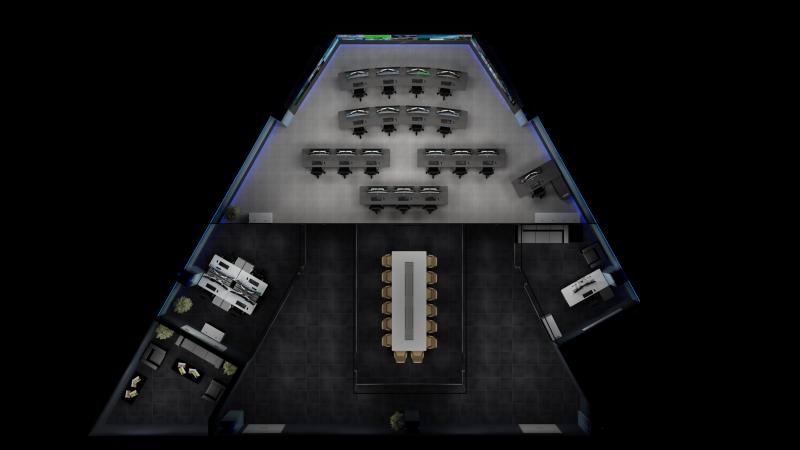

The control centre is distributed as it follows:

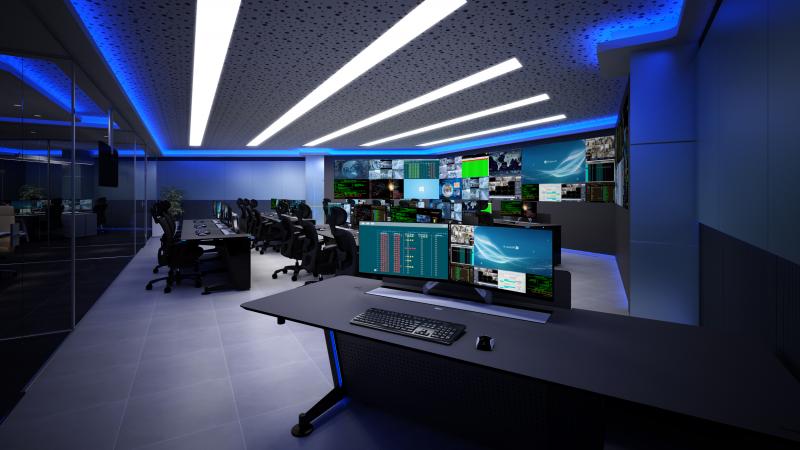

NOC AREA



Area: 88 m2

Operators: 17 / Supervisor: 1

Audiovisuals: Operators: 2x24” / Supervisors: 2x24”

Videowall front wall: 6 x 1.35 m.

Videowall lateral wall: 3.6 x 1.35 m.

4 operator console (x2): V-Concept console for 1 operator with 1100mm long cable duct. Measures: 5972 x 1106 x 939 mm.

3 operator console  (x3): V-Concept console for 1 operator with 1100mm long cable duct. Measures: 4700 x 850 x 939 mm.

Supervisor console: V-Concept console for 1 operator with 1100mm long cable duct. Measures: 2186 x 1853 x 939mm.

Filing cabinet (x2): 1020 x 450 x 700mm. Structure in gray melamine with curved metallic cover and upper cable entry. Matt lacquered doors with individual keys and aluminum handles.



All workposts include:

+ 2x Single monitor support.

+ 1x Table board access cover to connectivity.

+ 1x Rear doors to access the internal compartment.

+ 1x Back Panel to hide the cabling.

+ 1x Wireless charger.

+ 1x CXO chair.

NOC MANAGER OFFICE



Area: 32 m2

Supervisor: 1

Audiovisuals: Operators: 2x24”

1 operator console: LAN console model by RDI. 1500mm cableducts. Measures: 2050x1450x740mm.



Includes:



+ 1x Double monitor support.

+ 1x Small electronic module.

+ 1x Side drawer.

+ 1x Device Support System (DSS).

+ 1x Table access to connectivity.

+ 1x On-board tray for office supplies.

+ 1x Wireless induction charger.

+ 1x CXO Chair.

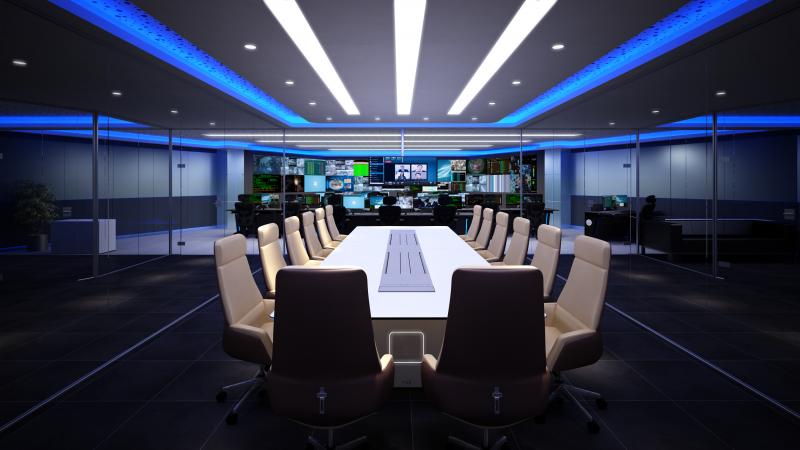

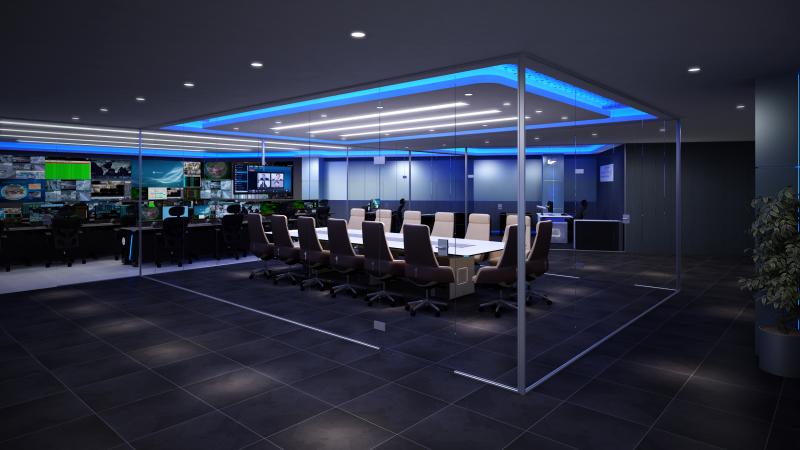

MEETING ROOM



Area: 40 m2.

Users: 14



B-Type meeting table model by RDI.

Includes:

+ 1x Table board cover.

+ 2x Central management support.

+ 4x Lateral management support.

+ 14x EC6 executive Chair.

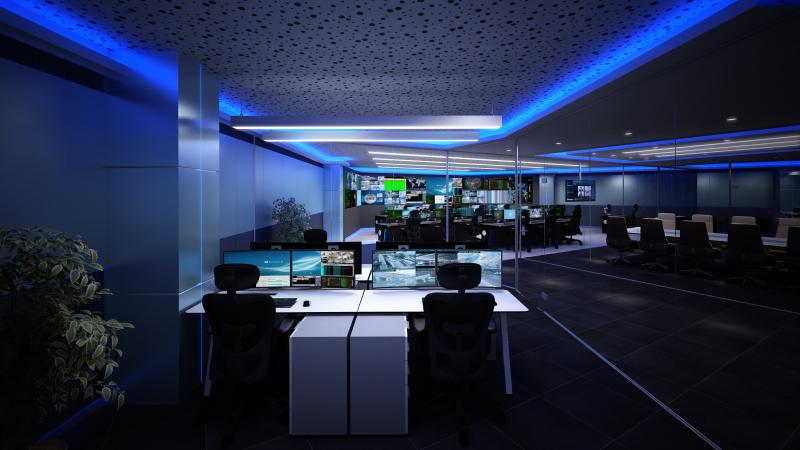

CALL CENTER AREA



Area: 20 m2

Operators: 4

Audiovisuals: Operators: 2x24”

2 operator console (x2): Kompas lite model with 2x 1200mm functional arcs, one each 2 operators. Measures: 2800x800x740(h) mm.



Includes for each operator:

+ 2x Simple monitor support for up to 24".

+ 1x Connectivity spots on table board.

+ 1x Peninsula compartment, includes space for electronics and drawer.

+ 1x CXO ergo chair.



Filing cabinet (x2): 1100 x 470 x 700mm. Structure in gray melamine with metallic cover and upper cable entry. Matt lacquered doors with individual keys and aluminum handles.

Both Nightingale Chair’s EC6 model and CXO model have been carefully chosen for the project as they represent power in a uniquely designed chair. A 24x7 comfort is essential for non-stop operational environments.
